To fsync or not, that is a question
Removing fsync from the write path of our single-node storage engine, while keeping data safe.
The cost of fsync
Let’s start with how object stores and databases handle fsync today. MinIO, in both single-node and distributed deployments, eventually writes to the local filesystem. Each PUT issues fdatasync or fsync on the data part and on xl.meta, flushing the file to the device. RocksDB’s WAL doesn’t sync by default. Applications that need crash-consistent semantics have to opt in. etcd is stricter: every Raft entry is fsynced on the way to disk, and the etcd paper calls this out as essential to Raft safety. Postgres fsyncs the WAL at commit and uses group commit to amortize per-commit latency. Kafka is the outlier. By default it doesn’t fsync on the write path at all and leans entirely on replication for durability. The trade-off there is that single-node data safety is weakened. Data inside the power-loss window can be lost, and the cluster’s replication factor becomes the only line of defense.
Getting fsync right is hard. Jepsen has surfaced fsync-related data-loss bugs in distributed systems many times. The most recent example is NATS 2.12.1 losing data on the crash-recovery path (Jepsen NATS 2.12.1 analysis).
Correctness aside, fsync is also expensive to call. A single fsync on an SSD typically takes a few hundred microseconds to a couple of milliseconds. Flushing data from the page cache to the device is just one part of that. The unpredictable part is metadata. fsync doesn’t just sync the file’s data, it syncs every piece of metadata the file depends on: inode, directory entry, extent map, all the way down to the filesystem journal commit. An fsync call that looks like it’s only touching a few KB can trigger an order of magnitude more I/O underneath.
Tail latency is even harder to control. Beyond the filesystem journal flush, the actual latency of any given fsync call also depends on concurrent I/O on the same device, the journal’s current commit progress, and the SSD’s GC activity. Any one of those can push latency several times above the median.
Why we built our own engine
Our local storage engine is not a general-purpose solution. We were able to remove fsync because our context narrows the design space considerably:
- The medium is SSD only. We don’t target HDDs.
- Values range from a few hundred bytes to a few hundred KB.
- Write semantics are single-key atomic. A write is either fully visible or fully invisible.
- The interface is a simple KV API.
Loosen any of these (add HDD support, POSIX compatibility, or richer KV semantics) and the design has to be rethought from scratch.
We surveyed the alternatives before building our own. Going straight to the filesystem with fsync runs into the bottleneck described above. LSM engines like LevelDB and RocksDB still depend on fsync for the WAL, and their compaction layer adds significant write amplification, which is a poor fit for hundred-KB values. We chose to build a single-node engine from scratch: space allocation, indexing, journaling, and recovery, all in-house.
Architecture overview

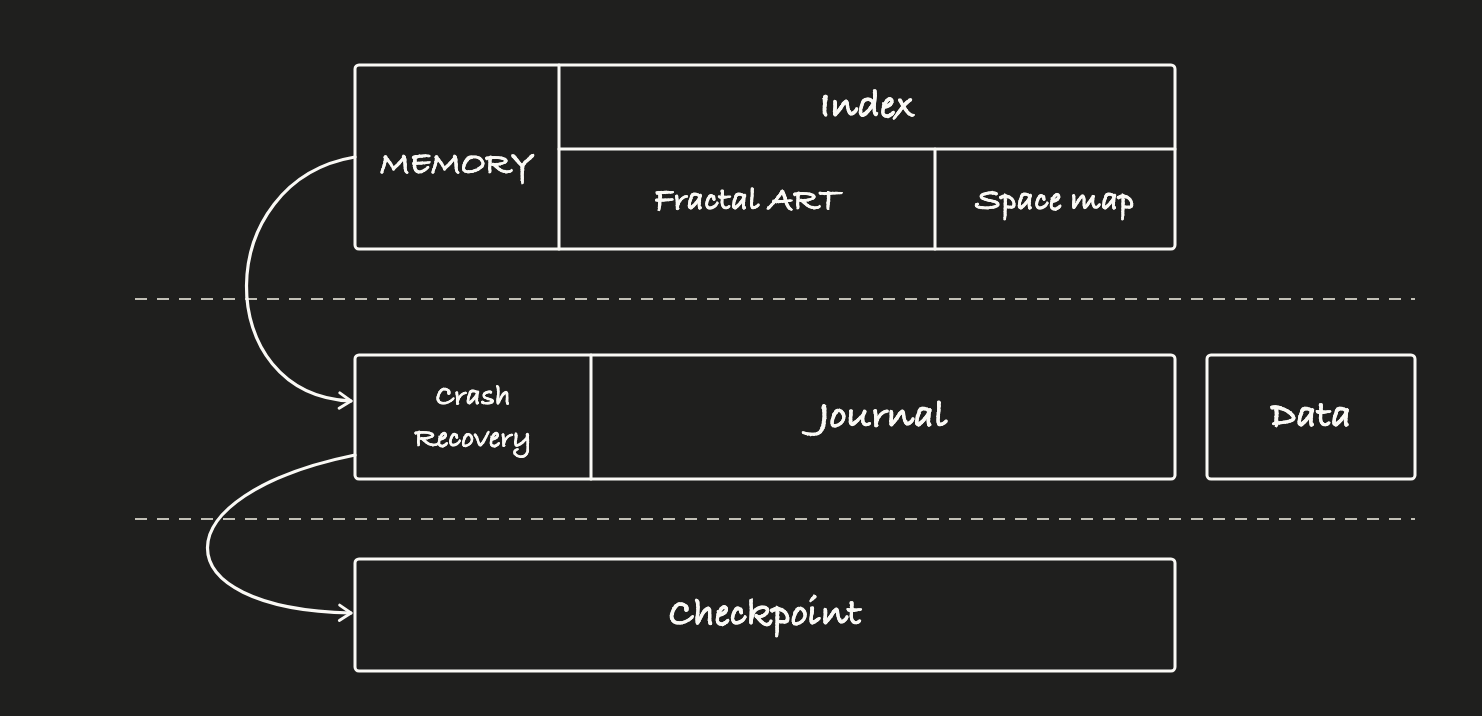

The engine has three components: index, journal, and data area.
The index maps keys to value locations and is mostly resident in memory. The journal records changes to the index and to the data area’s allocation state. It is the engine’s crash-consistency boundary. The data area holds the values, written under an engine-managed layout strategy. Both the journal and the data area live on the filesystem, with durability provided by fallocate-based pre-allocation and O_DIRECT writes.
Index: single-node fractal art
The index maps keys to where their values live on disk. We didn’t build this from scratch. We reused our existing metadata engine fractal art[1] and adapted it for the single-node case, mainly by adding journaling, checkpointing, and space management. The index aims to keep its data resident in memory but does not require a full upfront load. PUT and DELETE only modify in-memory pointers, which makes the operation atomic at the memory level. Persistence is delegated entirely to the journal.
Shared foundations
The journal area and the data area share two underlying design choices: fallocate-based pre-allocation and O_DIRECT writes.
Fixed-size pre-allocation. Both areas are pre-allocated with fallocate at startup, with sizes that stay fixed for the engine’s lifetime. This matters because if a file’s size grows on writes, the inode’s size field has to be updated, and a size change is metadata that requires fsync to make durable. Fixed sizing eliminates that path. Writes never allocate new extents and never modify file size. The inode stays unchanged. The write path never triggers filesystem-level metadata changes. There is one detail with fallocate (pre-zeroing) we’ll address later.
O_DIRECT writes. Both areas write through O_DIRECT, bypassing the page cache and going straight to the device. With aligned buffers, a write completion means the data has reached the storage medium. There is no “in kernel but not yet on disk” intermediate state, so no fsync is needed to flush page cache to device. On NVMe SSDs, O_DIRECT also gives noticeably better tail-latency stability than buffered I/O. There is an implicit assumption here: write completion equals data on non-volatile media only if the device cooperates. This holds on cloud-provider NVMe SSDs and on enterprise NVMe SSDs.
Journal
The journal is the most sensitive part of the design. Most storage engines rely on fsync to make the WAL or journal durable, replaying it after a crash to recover a consistent state. Our goal is to preserve that “write completion equals persistence” guarantee without ever calling fsync.
The journal records only changes to the index and the space map. It does not carry value data. Value persistence is handled independently by the data area, and the journal only logs “where this key currently points.” Each record is typically tens to a couple hundred bytes, but the journal handles the engine’s highest-throughput writes and has the strictest latency and durability requirements.
Pre-allocation and O_DIRECT already eliminate the filesystem-layer uncertainty. To guarantee the integrity of a single record, the journal additionally relies on one device capability:
4KB atomic writes. Modern NVMe SSDs typically support 4KB-granularity atomic writes (the exact guarantee comes from the device’s atomic-write-unit spec, and enterprise SSDs generally satisfy it by default). A 4KB submission either takes effect entirely or doesn’t happen at all. There is no half-written state. Journal records are written with 4KB alignment, so a power loss can only fall between two atomic writes. The integrity of any single record is guaranteed by the device.
Pre-allocation, O_DIRECT, and 4KB atomic writes together give the journal the same persistence guarantee as a post-fsync write, without paying any of fsync’s cost. A journal record that has been confirmed written cannot be lost on power failure.
The design also yields a useful property:
Batch commits. Multiple concurrent puts can be merged into a single I/O write to the journal, raising I/O efficiency and lowering per-put average latency.
The engine periodically takes a checkpoint of the in-memory metadata index, which lets older journal blocks be reclaimed. Checkpoints run concurrently with foreground writes. On restart, the engine loads the most recent checkpoint and replays the journal from there.
Data area
The data area stores values. On top of the shared foundations, it solves two more problems: space allocation and value placement.
Space allocation is fully under engine control. We maintain a separate space map that records which regions are free, which are in use, and where each value lives. It is independent of the filesystem’s extent tree. The benefits:
- Predictable allocation cost. All space-map queries and updates happen in memory and never enter the filesystem metadata path. The per-put allocation cost is essentially negligible.
- Cheap delete and reuse. Freeing space only flips bits in the space map. There is no filesystem-level metadata reclamation, and the freed region is immediately available for reuse.
- Flexible placement policy. Hot/cold partitioning and size-tiered placement strategies can be tuned freely based on access patterns, with no dependency on the filesystem allocator.
A complete PUT
Wiring the three components together, a single PUT looks like this:
- The caller invokes put(key, value).
- The engine allocates space from the space map.
- The value is written to the data area via O_DIRECT.
- A change record is batched into the journal, capturing the new location and the space-map update.
- The in-memory index (fractal art) is updated to point at the new location.
- The PUT returns success.
The whole flow makes no fsync calls. Atomicity falls entirely on step 4. A journal record already on disk is guaranteed visible after restart. A record that wasn’t written is dropped on recovery. Step 3 writes the value before the journal commit, so its validity hinges on step 4. If power fails between step 3 and step 4, the space-map scan on restart classifies that region as uncommitted, and the data is invisible to any external reader.
For comparison, a strict PUT on a filesystem requires more than one fsync. Calling fsync on the file’s fd alone doesn’t guarantee the file exists. The directory entry is metadata of the parent directory, and a separate fsync on the parent’s fd is needed for that to be durable. Without it, a freshly created file can vanish after a power loss. This POSIX requirement is rarely followed in practice. Our engine sidesteps the entire metadata class via pre-allocation and fixed sizing. The PUT path doesn’t fsync any file or any directory.
DELETE is even cheaper, almost free. A delete record goes into the journal, the index drops the key, and the space map flags the region as reclaimable. The data area is never touched. The space the old value occupied is naturally reused on the next overwrite. On a filesystem, delete is the opposite. unlink touches the parent’s directory entry, the inode, and the extent records, with every change going through the filesystem journal. Even an implementation like MinIO that doesn’t fsync the parent after unlink still pays the metadata-commit cost. This is another clear win for our engine over filesystem-based approaches.
There is a less obvious second-order effect on the filesystem side: deletes interfere with concurrent puts. Both operations contend for the same filesystem journal, so put tail latency takes a hit when deletes are concurrent. Deletes also fragment the free-extent structure, which forces subsequent puts to search through holes for usable regions. In our engine, delete only touches the in-memory space map, and put allocates from the same map. There is no shared metadata-I/O path between them.
A note on pre-zeroing
After fallocate, the journal and data areas need one more setup step: pre-zeroing the entire region.
fallocate only marks the extent as “allocated” at the filesystem layer. It doesn’t actually write data. On ext4 and XFS, this is called an unwritten extent. The first write into one of these regions triggers an extent conversion from unwritten to written, which updates inode metadata and commits to the filesystem journal. In other words, the benefit of pre-allocation is consumed on the first write.
We sidestep this by writing zeros across the entire region right after fallocate, forcing every extent into the written state. This is a one-time startup cost in exchange for never triggering filesystem-level metadata updates on the runtime write path. If extent conversion ever leaks into the runtime path, every previous effort to avoid metadata I/O is wasted, and the latency tail comes back.
Performance numbers
We benchmarked the engine against filesystem-based approaches under a 4KB random-write workload. Test environment: AWS EC2 NVMe SSD (i8g.2xlarge), 4KB files, single-threaded io_uring, queue depth QD=100.
4KB random write
| Configuration | Throughput (obj/s) | avg | P50 | P99 |
|---|---|---|---|---|
| ext4 + buffered + fsync | 79,123 | 1262 µs | 1229 µs | 1852 µs |
| ext4 + O_DIRECT + fsync | 116,041 | 859 µs | 828 µs | 1425 µs |
| Our engine | 190,985 | 413 µs | 363 µs | 1013 µs |
The engine’s throughput is 2.4× the buffered+fsync case and 1.6× the O_DIRECT+fsync case. Average latency is 3.1× and 2.1× lower respectively. The gap comes from removing fsync from the write path entirely, plus pre-allocation eliminating filesystem-journal metadata commits, which is what tightens the tail latencies.
A note on fairness: both ext4+fsync configurations only fsync the data file, not the parent directory. POSIX strictly requires a parent-directory fsync to make a newly created file’s existence durable. Otherwise the file can disappear after a power loss. So the two control configurations actually have weaker durability than our engine. Adding the parent-directory fsync would only make their latencies worse and widen the gap.
Beyond the synthetic benchmark, end-to-end product testing confirmed the same trend. The previous engine used a MinIO-like approach: one file per object, written via O_DIRECT (no fsync). For atomic writes, each PUT writes to a temporary file and then renames it to the target path. Each step (creating the temp file, modifying directory entries, committing the rename) touches filesystem metadata, and the cumulative cost is significant. That is why it ends up slower than the new engine.
End-to-end PUT 4K
| Metric | Old engine | New engine | Change |
|---|---|---|---|
| obj/s | 248,545 | 333,308 | +34.1% |
| Avg latency | 6.6 ms | 4.4 ms | -33.3% |
Throughput is up around 34% and average latency is down by about 33%. The result aligns with the synthetic benchmark. Test configuration details are in the fractalbits repository.
Known limitations
Not suited for HDDs. The optimization assumes SSD random-write performance is good enough. On HDDs, seek dominates, the space-map layout strategy needs a redesign, and O_DIRECT loses much of its advantage.
Not a general-purpose KV engine. The current API is narrowly scoped to what our product needs. PUT, GET, DELETE, and LIST cover our cases but don’t match general-purpose KV engines like RocksDB or LevelDB. Complex range-scan variants, TTL, secondary indexes, and compression-policy tuning are not implemented.
No complex transactions. Beyond single-key atomic writes, we don’t provide multi-key transactions, cross-table transactions, or serializable isolation. We are not a database and don’t intend to evolve into one. Workloads that need these semantics should use something else.
Still on a filesystem, not raw drive. fallocate plus pre-zeroing plus O_DIRECT minimizes filesystem-metadata noise on the write path, but we have not actually skipped the filesystem layer. For on-prem deployments where the workload can take a whole device, going further is a natural next step: dropping the filesystem entirely and managing the block layer directly. Direct raw-drive control allows tighter management of device-level write patterns, lower host-side write amplification reaching NAND, and better integration with host-managed features like ZNS to reduce in-drive GC. The result would be even more predictable latency.
Closing
To fsync or not, it depends on your workload. In our high-performance setting, fsync’s cost is high enough to justify rebuilding the entire engine. The price was implementing space allocation, indexing, journaling, and recovery from scratch. The performance numbers say it was worth it.
